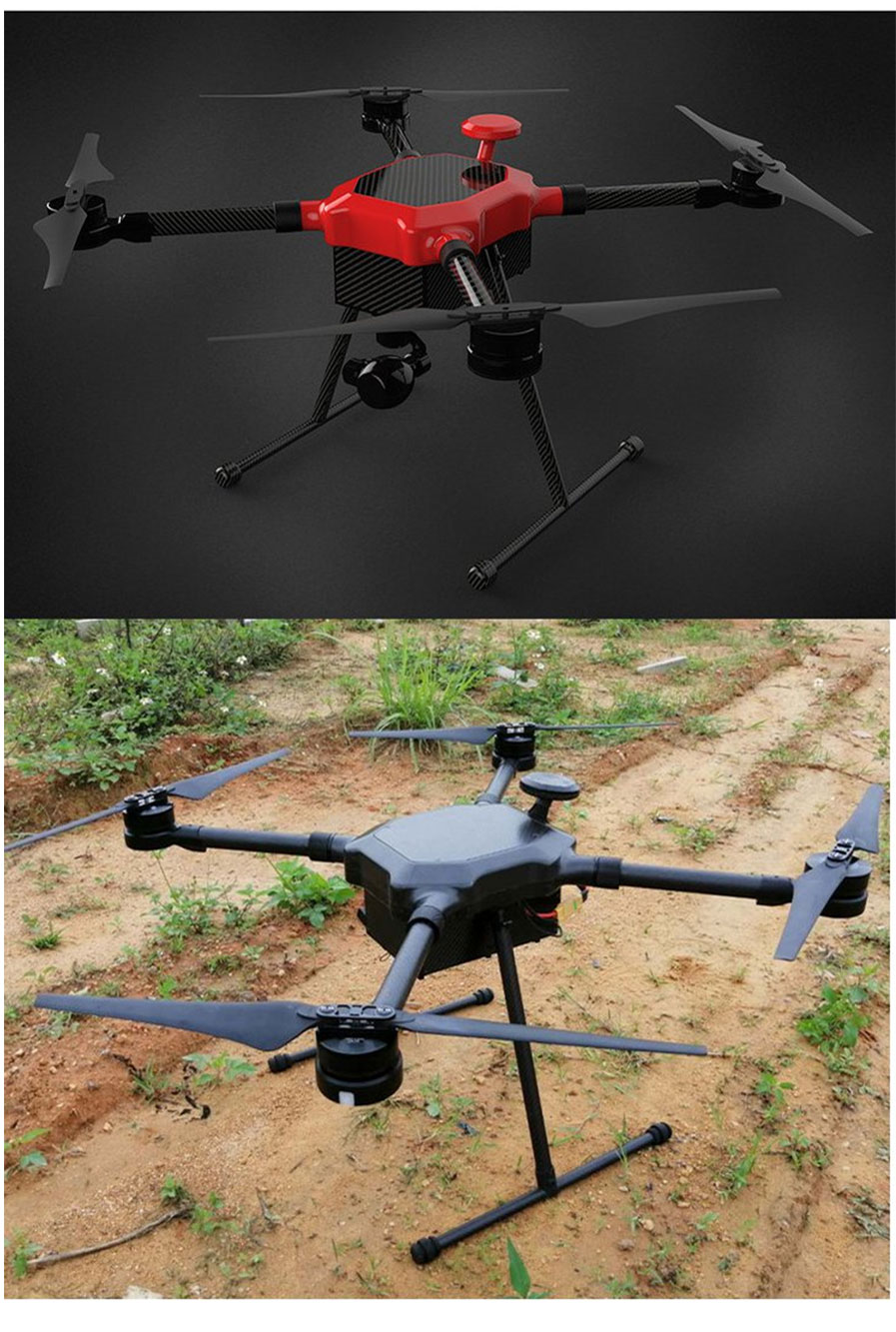

Home UAV Airframe X850 Quadcopter Full Carbon Fiber Integrated Frame Kit Industrial Drone Mapping Inspection Photography Drone UAV JMRRC
Product Attributes
| Place of Origin: Guangdong, China | Brand Name: JMRRC | Model Number: X850 | Private Mold: Yes | Application: multifunctional drone | Dimension: 1000*1000*440mm | Folding dimension: 400*430*440mm | Wheelbase: 850mm | Arm tube diameter: 28mm | Frame weight: 1.2KG | Max payload: 5KG | Propeller size: 21/22 inch |
Product Parameters
| Type of Shipping | |
| Packaging Method | custom-made carton |
Product Details
Package Including

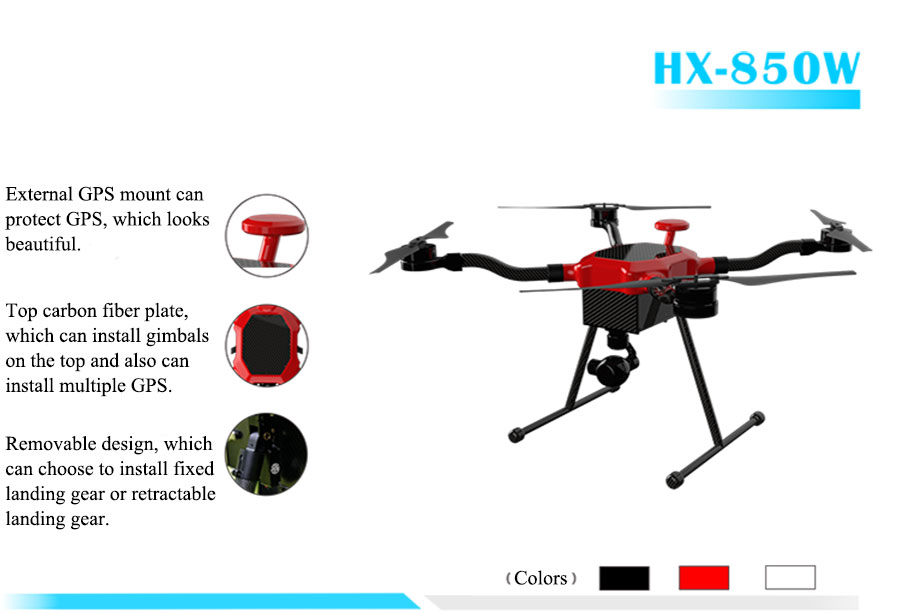

HX-850 frame kit * 1set
Description

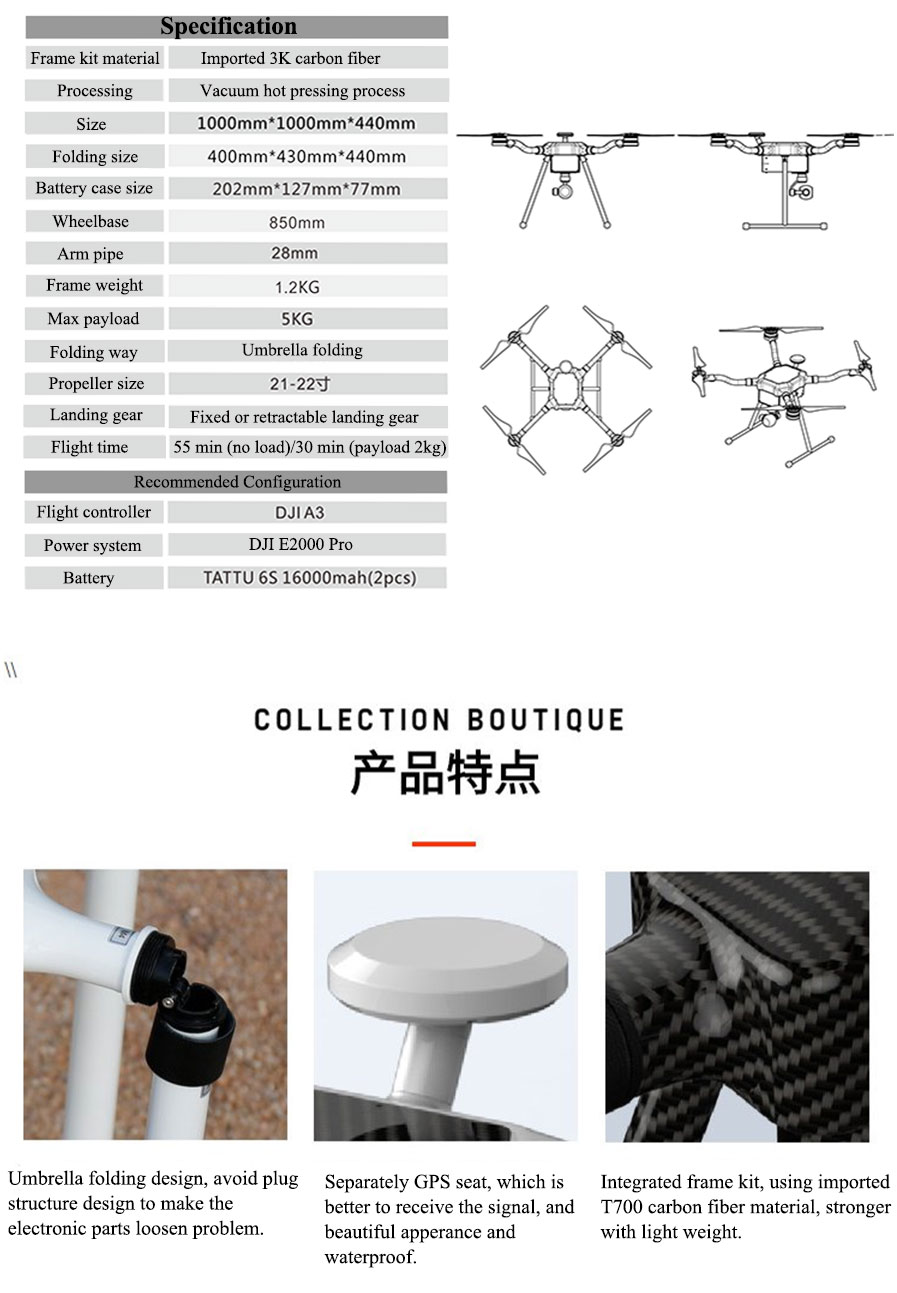

Specification:
Center plate material: carbon fiber
Arm pipe size: out diameter 28mm
Frame kit wheelbase: 850mm
Folding way: umbrella folding
Frame kit measurement: 1000mm*1000mm*440mm
Folding measurement: 400mm*430mm*440mm
Frame kit weight: about 1.2kg (with landing gear and battery case well)
Recommended Power System:
Motor: JMRRC Z5 PRO 12S power combo (built-in 12S ESC well)
Propeller: 22inch foldable propeller
By using recommended power system, using 2pcs of 6S 16000mAh high-efficiency semi-solid lipo battery, this drone take-off weight is about 8kg.
1- Without any extra payload weight, the drone hovering time is about 60min.
2- With extra 2kg payload weight, the drone hovering time is about 42min.
Note: All the flight time provided for reference only. Flight data is based on actual flight.
Center plate material: carbon fiber
Arm pipe size: out diameter 28mm
Frame kit wheelbase: 850mm
Folding way: umbrella folding
Frame kit measurement: 1000mm*1000mm*440mm
Folding measurement: 400mm*430mm*440mm
Frame kit weight: about 1.2kg (with landing gear and battery case well)
Recommended Power System:
Motor: JMRRC Z5 PRO 12S power combo (built-in 12S ESC well)
Propeller: 22inch foldable propeller
By using recommended power system, using 2pcs of 6S 16000mAh high-efficiency semi-solid lipo battery, this drone take-off weight is about 8kg.
1- Without any extra payload weight, the drone hovering time is about 60min.
2- With extra 2kg payload weight, the drone hovering time is about 42min.
Note: All the flight time provided for reference only. Flight data is based on actual flight.
