Product Attributes
| Model NO.: KWT-F350-H | Max take-off Weight: 14kg | Empty Weight: 7kg | Max Payload Weight(with Battery: 7kg | Packing Size: 1500mm×210mm×380mm | Stalling Speed: 65km/H | Max Flight Speed: 120K/H | Cruising speed: 72km/H | Flight Time(with 14kg): 2 H | Battery: 14400mAh | Motor: 500kv | Transport Package: Aluminum Case | Specification: carbon fiber | Trademark: SPELL | Origin: China | Production Capacity: 5000/Year | Certification: Iso9001 | Height: High Altitude | Operating Radius: Remote | Size: Large | Usage: Industrial | Structure: Fixed-Wing UAV |
Product Parameters
| Type of Shipping |
Product Details
Basic Info.
Model NO.
KWT-F350-H
Max Take-off Weight
14kg
Empty Weight
7kg
Max Payload Weight(with Battery
7kg
Packing Size
1500mm×210mm×380mm
Stalling Speed
65km/H
Max Flight Speed
120K/H
Cruising Speed
72km/H
Flight Time(with 14kg)
2 H
Battery
14400mAh
Motor
500kv
Transport Package
Aluminum Case
Specification
carbon fiber
Trademark
SPELL
Origin
China
Production Capacity
5000/Year
Product Description

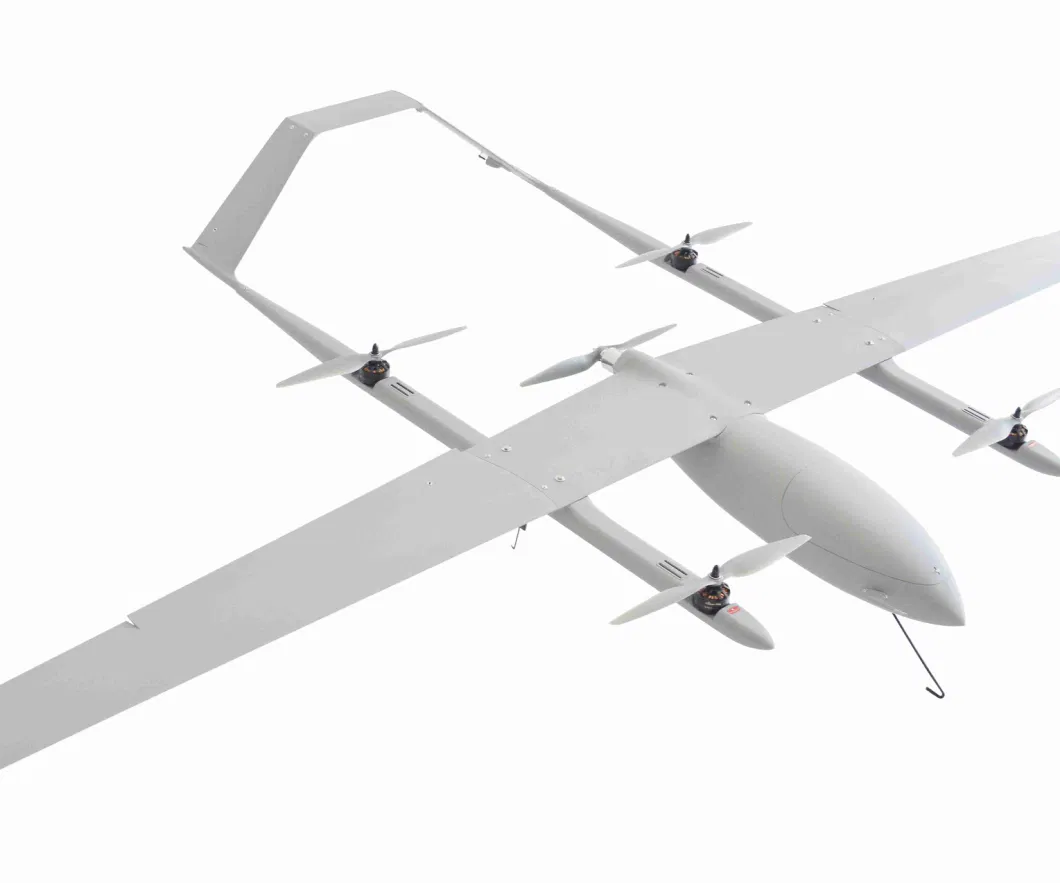

KWT-F350-H VTOL Fixed-wing UAV
The KWT-350 VTOL fixed-wing UAV, with its long endurance, fast speed and long distance feature, is a perfect combination of multi-rotor and fixed-wing flight control technology for a vertical take-off and landing.
Since take-off runway and large airspace are unnecessary, it can be operated on ship deck, narrow airspace, mountains, jungles and complex urban terrain. In autonomous flight mode, it can complete the cruise, flight state transitions and vertical take-off & landing without human intervention.
Feature
Packing dimensions:
1500mm×210mm×380mm
The KWT-350 VTOL fixed-wing UAV, with its long endurance, fast speed and long distance feature, is a perfect combination of multi-rotor and fixed-wing flight control technology for a vertical take-off and landing.
Since take-off runway and large airspace are unnecessary, it can be operated on ship deck, narrow airspace, mountains, jungles and complex urban terrain. In autonomous flight mode, it can complete the cruise, flight state transitions and vertical take-off & landing without human intervention.
Feature
- Easy to assemble and operate
- Vertical take-off and landing, without limitation of space
- Resistance to harsh weather conditions
- Diesel-electric version and electric version optional
- All carbon fiber composite material, industry standard architecture
- Compatible with PC station, suitable for open source of autopilot system
| Diesel-electric Version | |
| Max take-off weight | 14.4kg |
| Empty weight | 8.1kg |
| Max payload weight(with battery) | 6.3kg |
| Engine | 21cc Electricity oil |
| Fuel tank | 2.5L |
| Battery | 14400mAh |
| Flight time(with 14kg) | 4 h |
| Cruising speed | 90km/h |
| Max flight speed | 110km/h |
| Stalling speed | 72km/h |
| Packing Size | 1500mm×210mm×380mm |
| Electric Version | |
| Max take-off weight | 14KG |
| Empty weight | 7KG |
| Max payload weight(with battery) | 7KG |
| Motor | 500kv |
| Battery | 14400mAh |
| Flight time(with 14kg) | 2 h |
| Cruising speed | 72km/h |
| Max flight speed | 120k/h |
| Stalling speed | 65km/h |
| Packing Size | 1500mm×210mm×380mm |
| Fuselage Specification | |
| Wingspan | 3500mm |
| Fuselage length | 1800mm |
| Height | 500mm |
| Wing area | 70dm² |
| Runway | 5m×5m |
| Takeoff/Landing | VTOL |
Packing dimensions:
1500mm×210mm×380mm
Vtol Fixed-Wing Uav, Gas and Electric Hybrid and Pure Electric Versions
