Home UAV Airframe Oblique Photography Camera Mounted on Uav for High Efficient Surveying and Mapping
Product Attributes
| Model NO.: KWT-X6L | Flight Time: More Than 65 Minutes | Wind Tolerance: 14m/S | Max Flight Speed: 54km/H | Relative Flight Altitude: 1000m | Max Working Elevation: 5000m | GPS Position Vertical Accuracy: +/- 1.5m | GPS Position Horizontal Accuracy: +/- 2m | Remote Control Distance: 7km | GS Control Distance: 10km | Customized: Okay | Transport Package: Professional Design Packing | Specification: 1120*540*380mm | Trademark: ALLTECH | Origin: China | Production Capacity: 50000/Year | Certification: Iso9001 | Height: High Altitude | Operating Radius: Remote | Size: Small | Usage: Joint Anti Terrorism | Structure: Unmanned Rotorcraft |
Product Parameters
| Type of Shipping |
Product Details
Basic Info.
Model NO.
KWT-X6L
Flight Time
More Than 65 Minutes
Wind Tolerance
14m/S
Max Flight Speed
54km/H
Relative Flight Altitude
1000m
Max Working Elevation
5000m
GPS Position Vertical Accuracy
+/- 1.5m
GPS Position Horizontal Accuracy
+/- 2m
Remote Control Distance
7km
GS Control Distance
10km
Customized
Okay
Transport Package
Professional Design Packing
Specification
1120*540*380mm
Trademark
ALLTECH
Origin
China
Production Capacity
50000/Year
Product Description
Suggest whole set of industrial drone solution:
Oblique camera+KWT-X6L drone+ Handheld receiver mounted on remote controller+ Integrated ground control station+Package
Five CCD oblique photography for high efficient survey and mapping
Adopting advanced 3D printing technology and manufacturing technique, our oblique camera with high modularity unit can work under different weather conditions and natural environments. With industrial material, it features for robust and light weight of about 2.5kg. With Sony original professional lens, the camera total pixel reaches more than 100 million with storage of 160G. In order to offer good use experience for users, it has added latest new functions as follows:
Camera features:

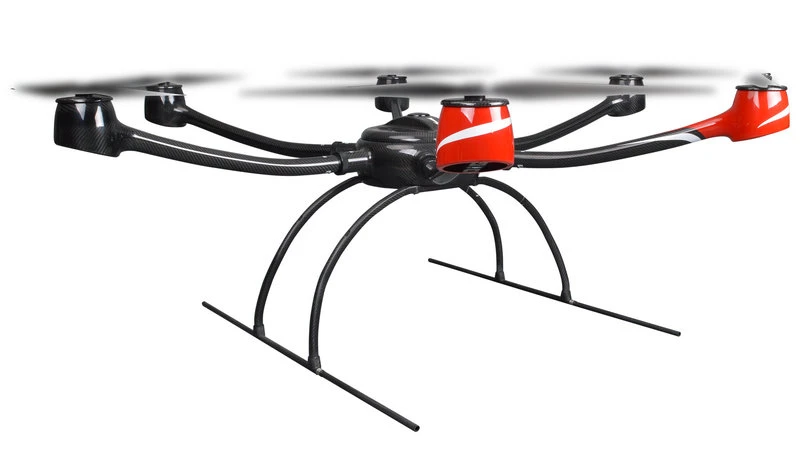

KWT-X6L industrial drones
Features
R760-FPV Handheld Video Receiver
Technical parameters
Integrated Ground Station System SPELL-IG
The Integrated ground station system is a multi-function system integrated with high-definition image receiving & display, data transmission link and multi-function ground station. Using the SPELL series, aircraft can easily achieve FPV flight and control.
Features
1. Ground station system using Intel i5 processor,
powerful performance and smooth operation;
2. High-luminance screen, low reflectivity, visible in direct
sunlight without the need for lens hood;
3. Features track ball keyboard and high-precision electromagnetic stylus, easy operation;
4. Built-in 900 MHz radio module with automatic frequency hopping, effectively avoids interference;
5. Simultaneous airborne HD transmitter image receiving
and screen display;
6. HDMI video output, external connection with large screen display;
7. Local video recording;
8. Portable suitcase structure, equipped with tripod, small size and simple packing & transportation;
9. High-gain antennas for longer distance image and data transmission; easy to control.
Technical Parameters
Package:
Oblique camera+KWT-X6L drone+ Handheld receiver mounted on remote controller+ Integrated ground control station+Package
Five CCD oblique photography for high efficient survey and mapping
Adopting advanced 3D printing technology and manufacturing technique, our oblique camera with high modularity unit can work under different weather conditions and natural environments. With industrial material, it features for robust and light weight of about 2.5kg. With Sony original professional lens, the camera total pixel reaches more than 100 million with storage of 160G. In order to offer good use experience for users, it has added latest new functions as follows:
- SD card with POS recording functions, great convenient for exporting out position data;
- External power source charger convenient for charging avoids inner battery without enough power.
- Convenient export out all the cameras photos and POS data at the same time from one USD;
- Inner camera structure angle adjustable( 42~43 angle)
- One key shooting mode switchable, suitable for different applications.
Camera features:
- CCD sensor* 5
- CCD sensor dimension: 15.4*23.2mm
- Minimum exposure interval: 3.5s
- Prime lens focal distance: 20mm
- Pixel: 20.1Million
- Storage: 160G
- Anti-shake: Optical anti-shake and inner structure machinery anti-shake technology
- CCD on-off switch: 5 CCD sensors on-off at the same time
- Camera charging: all external power source charging, long working ime
- Oblique camera angle: adjustable 42~43 angle
- Exposure mode: periodic exposure; exposure triggered by outer signal
- 5 cameras' photos and POS data can be read from only one USB
- Work humidity: 95%
- Weight: 2.5kg.
KWT-X6L industrial drones
Features
- Carbon fiber integrated molding with high rigidity and light weight; supports more than 65 minutes flight time with 500g payload
- Innovative upturned arm design for flying stability and good strength, ensuring wind tolerance up to 14 m/s.
- Detachable arms structure, quick plug-in design, get ready to fly within 5 minutes.
- Full HD 1080i/P real time video transmission, supports zoom, thermal, wide angle camera and so on payloads.
- Highly integrated rainproof gimbal unit with good rain performance, able to fly in the rainy day
- Intelligent flight control system with manual precise control and autonomous flight mode
- Finite difference GPS with high anti magnetism performance for accuracy position
| Technical Parameters | |
| Diagonal wheelbase | 1600 mm |
| Max wingspan | 2323+/-20mm |
| Standard take-off weight | 11.5+/-0.2 kg |
| Max take-off weight | 16+/-0.2kg |
| Max payload weight | ≥5 kg |
| Flight time | ≥65 min (@11.5kg) |
| Wind loading rating | 13.9~17.2m/s |
| Max flight speed | 15 m/s |
| Relative flight speed | 3000 m(plain) |
| Max working altitude | 5000 m |
| GPS position accuracy | vertical: ±1.5 m horizontal: ±2 m |
| Remote control distance | 7km( up to the environment) |
| GS control distance | 10 km( up to the environment) |
| Center Frame Packing Case Dimensions | 1150 x 440 x 500 mm |
| Frame Arm Packing Case Dimensions | 1120 x 540 x 380 mm |
R760-FPV Handheld Video Receiver
Technical parameters
| Video RF | Rx input frequency range | 250 MHz ~ 800 MHz (2/4/6/7/8M) |
| RF bandwidth | 2/4/6/7/8 MHz | |
| Rx sensitivity | ≤-92 dBm @8M | |
| Modulation | COFDM | |
| Video resolution | 1920 × 1080 × 60i/50i (MAX) | |
| Video interface | Video output source | HDMI |
| Recording | TF CARD | |
| Power interface | DC φ5 mm/2.1 mm charging | |
| Others | Screen size | 5 inch (Folding shade optional) |
| Screen brightness | 500 cd/m2 | |
| Working current A | ≤1.3A @DC7.4 | |
| Charge current A | ≤1.5A @CC-CV | |
| Working voltage V | DC 8.4V | |
| Working temperature | 0°C~+45°C | |
| Weight | 480g (w/o antenna) | |
| Dimensions | 145 mm × 94 mm × 35 mm(w/o antenna antenna) 145mmX94mmX50mm |
|
| Battery capacity | 3400 mAh @7.4V | |
| Working time | >2h @25°C |
Integrated Ground Station System SPELL-IG
The Integrated ground station system is a multi-function system integrated with high-definition image receiving & display, data transmission link and multi-function ground station. Using the SPELL series, aircraft can easily achieve FPV flight and control.
Features
1. Ground station system using Intel i5 processor,
powerful performance and smooth operation;
2. High-luminance screen, low reflectivity, visible in direct
sunlight without the need for lens hood;
3. Features track ball keyboard and high-precision electromagnetic stylus, easy operation;
4. Built-in 900 MHz radio module with automatic frequency hopping, effectively avoids interference;
5. Simultaneous airborne HD transmitter image receiving
and screen display;
6. HDMI video output, external connection with large screen display;
7. Local video recording;
8. Portable suitcase structure, equipped with tripod, small size and simple packing & transportation;
9. High-gain antennas for longer distance image and data transmission; easy to control.
Technical Parameters
| Model | Whole Machine | |
| Ground station board | CPU | Intel I5 |
| Storage | 8GB | |
| Digital radio | Frequency range | FH 902-928 MHz |
| Power output | ≤ 1W | |
| Receiving sensitivity | ≤-98 dBm @115200bps | |
| Bit rate | 115200 bps | |
| Image receiving | Frequency range | 170 MHz-860 MHz |
| Rx sensitivity | ≤-92 dBm @8 Mbps ≤-98 dBm @2 Mbps |
|
| Bandwidth | 2/4/6/7/8 MHz optional | |
| Output interface | USB | 2 Unit |
| HDMI | 1 Unit | |
| Display screen | 10.1-inch LCD | Anti Glare Screen |
| Battery time | >2 HRS | |
| Operating environment | -20° ~ 70° | |
Package:
Oblique Photography Camera Mounted on Uav for High Efficient Surveying and Mapping
