| Type: Agriculture drone | Condition: New | Year Built: 2024 | Place of Origin: Anhui, China | Symmetric wheelbase: 1600mm | Unfolded size: 1460*1480*560mm | Max pump pressure: 42kg | Net weight(excluding battery): 14.5kg | Folded size: 950*950*560mm | Arm retracting method: fold | Tank capacity: 16L | duration: 11-18min | Spraying area/flight: 1-1.8 hectare/flight; 4-7.2 hectare/hour | Spring width: 4-6m |
| Payment Method | L/C,Western Union,T/T,Others ,MoneyGram |
| Type of Shipping | |
| Shipping Port | SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU |
| Supply Capacity | 200 Set/Sets per Month |
| Packaging Method | 2 sets of professional transit box 1*UAV standard package 1*Battery & charger |

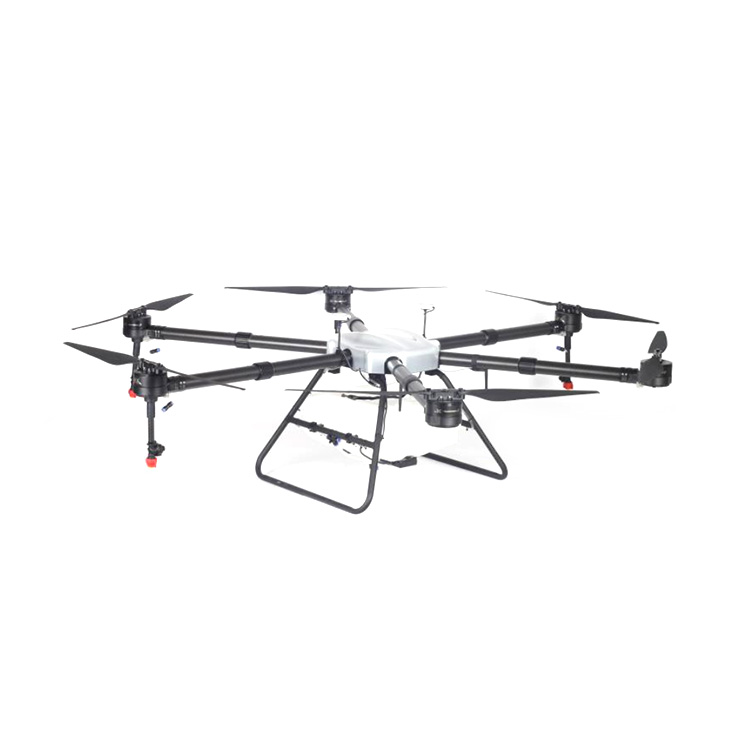

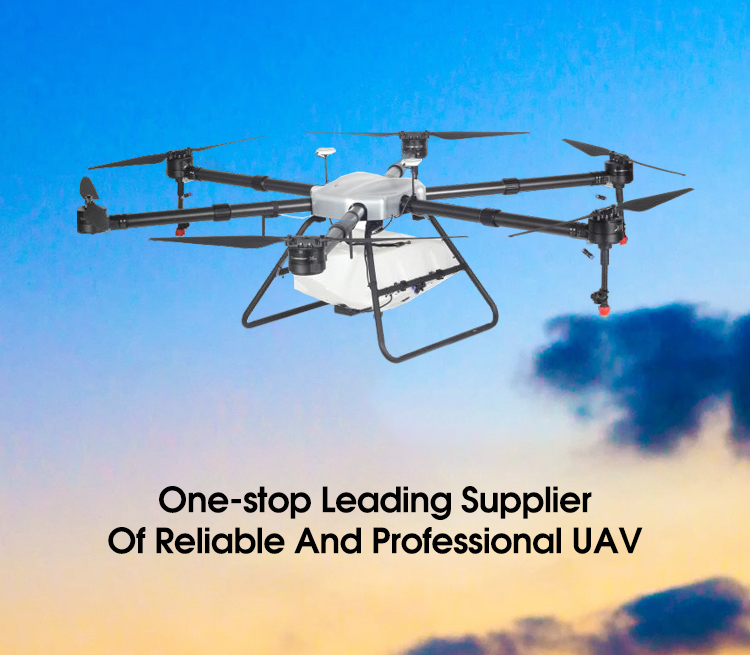

Linghang Aircraft Small Uav Controller Drone Intelligent Agriculture Drones Sprayer Low Cost uav Rtk Plant Protection Uav
|
Description |

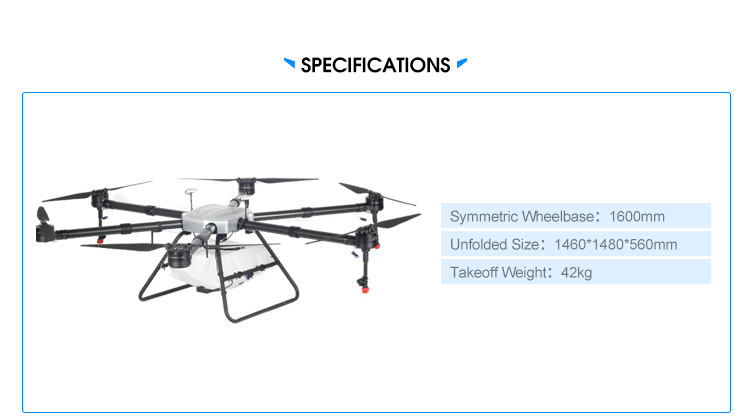

Parameter Specification |
|
Symmetric wheelbase |
1600mm |
|
Unfolded size |
1460*1480*560mm |
|
Takeoff weight |
42kg |
|
Net weight(excluding battery) |
14.5kg |
|
Folded size |
950*950*560mm |
|
Arm retracting method |
fold |
|
Tank capacity |
16L |
|
Duration |
11-18min |
|
Spraying area/flight |
1-1.8 hectare/flight 4-7.2 hectare/hour |
|
Spring width |
4-6m |
|
Spraying flight height |
4m |
|
Spraying flight speed |
3m |
|
Night light |
Yes |
|
Power system |
Brand: Haoying Model: X8 |
|
Power battery |
ACE 12S*22000mAh |
|
Spraying system |
6 Sprayer |
|
Remote control |
VD30 |
|
Charger |
UP1200AC PLUS |
|
GCS software |
Phone Android system, computer Windows system. |
|
Ground radar |
Standard package |
|
Obstacle avoidance radar |
Optional package |
|
Frame package size & Weight |
L×W×H:550mm×460mm×250mm weight:16kg |
|
Pesticide tank size & Weight |
L×W×H:470mm×350mm×300mm weight:2kg |
