| Place of Origin: Guangdong, China | Brand Name: JMRRC | Model Number: X1380S | Material: carbon fiber, Carbon Fiber Frame | Power: Lipo battery | Function: With Remote Control, Foldable | image capture resolution: others | Private Mold: Yes | Operator Skill Level: Beginner | Control Type: Remote Control | image transmission distance: Others | Product Name: JMR-X1380S | FEATURE: High Efficient | Pesticide Tank: 10L/10KG | Folding Type: crossing-folding |
| Type of Shipping | |
| Packaging Method | Standard export carton box |

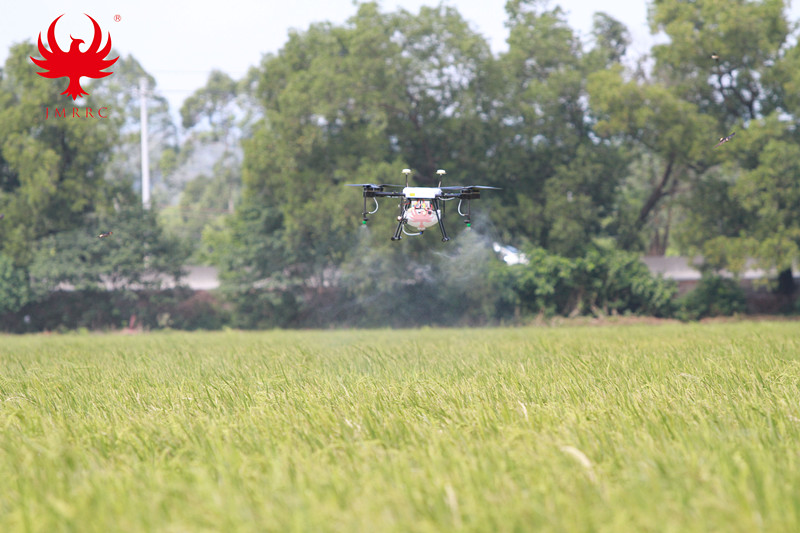

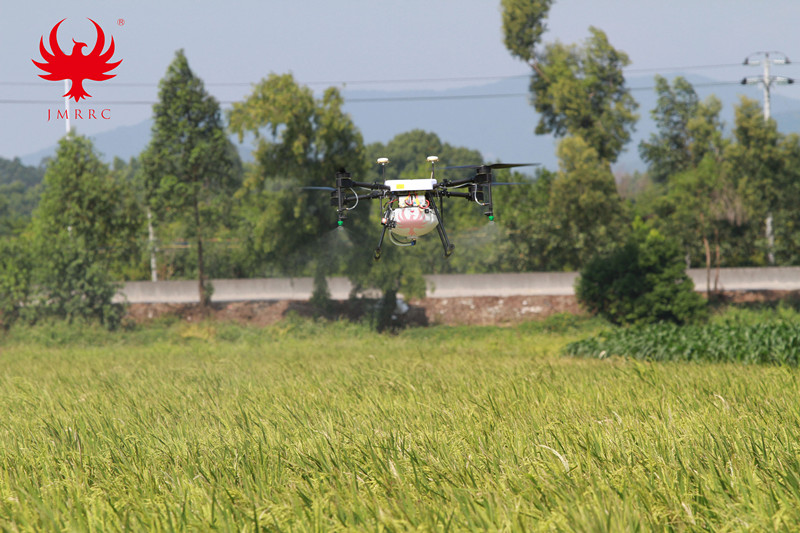

JMRRC new uav drone crop sprayer with professional camera and gps,aerial survey uav for uav mapping
Package Including:

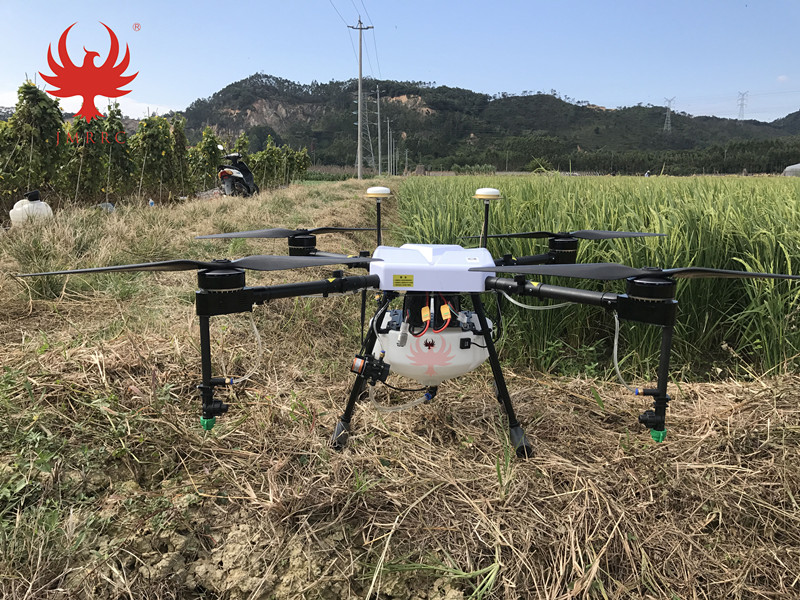

X1380S 10L Agriculture ready to fly drone * 1 set
(The drone has assembled the JIYI K++ flight controller, SIYI MK15 remote controller with FPV, using out diameter 40mm arm pipe, 40mm motor mount with LED light, 10L tank, 6S water pump with pump switch, 4pcs of nozzles assembled under the motor mount.)
Note: The price is not including the lipo battery, battery charger and radar.
And if you want to change the remote controller mode, we also can do, you just need to contact us.
Drone Power System Including:
8318 120KV motor * 4pcs
12S ESC * 4pcs
32inch foldable propeller with adaptor * 4pcs (2CW+2CCW)
Jiyi K++ flight controller
SIYI MK15 remote controller with FPV
(Mk15 remote controller has passed the CE, MIC, KC certification, we will ship the MK15 remote controller model according to the customer address.)
Drone Function List:
Flight mode: Manual / GPS
Spray mode: Manual / A-B point / Airway
Empty tank warming: yes
Continue spray: yes
Low battery alarm: Landing / return to home
FPV (real time video): IP67 waterproof camera
Crop App: Android APP
* Optional hardware request

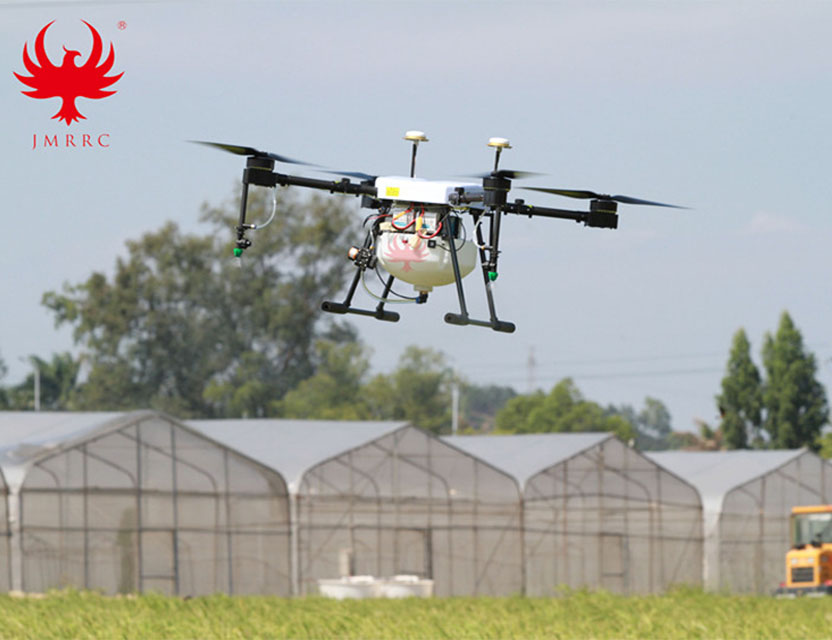

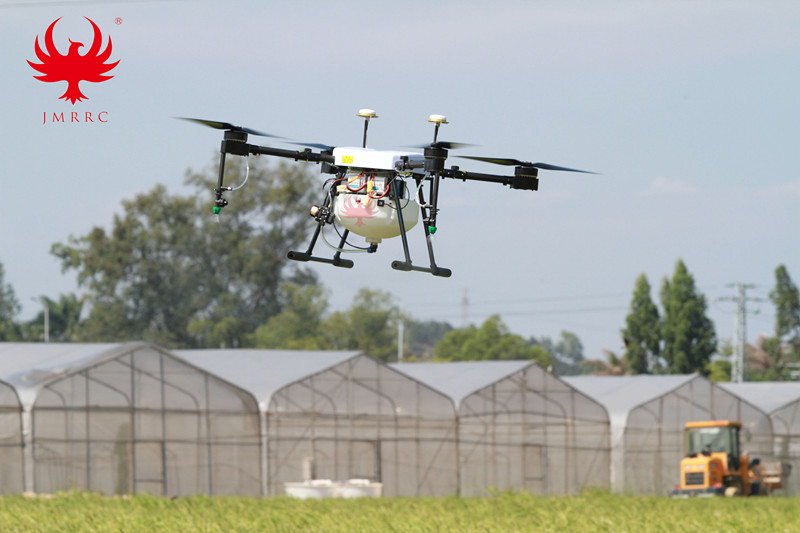

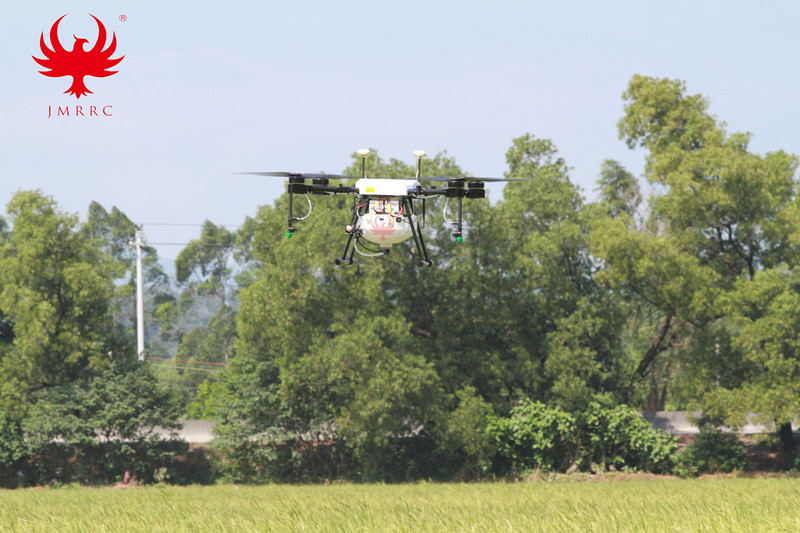

JMR-X1380S 10L is one of popular agriculture UAV products of Shenzhen GC Electronic Co, Ltd company. It is an economical practical spraying platform, which is specially designed for farmers. It is a crossing-folding drone, its structure makes it convenient for transportation.
The drone has the advantages of flexible and stable, simple operation, safe and reliable, simple maintenance and low maintenance costs. It applies to the majority of agriculture users.
- With the features of a light weight, high intensity of structure and corrosion resistance, it can effectively avoid pesticide residues on the frame caused by corrosion.
- Its function component has a modular design, and it is convenience for maintenance and upgrade.
- It adopts industrial-grade flight control system and it has a safety protection function which can return automatically.
- High stability and efficiency power device, It has the advantages of high temperature resistance, corrosion resistance, low calorific value, stable and reliable operation.
| Model | 10L Quad UAV JMR-X1380S |
| Measurment(W/O propeller) | 108x108x38CM |
| Meas. After folded. | 50x50x59CM |
| Maximum take off Weight | 29kg |
| Economy payload | 10kg |
| control radius | 1000meters |
| spray speed | 3~6meter/S |
| maximum flight height | 30meter |
| hovering time(no load) | 18-25min |
| spraying time (load) | 13-17min |
| flight mode | ATT/GPS/spray work |
| working temperature | 0~50℃ |
| N.W. | 8.9Kg |
| spraying width | 3-6 meter |
| spraying speed range | 3-6 meter/S |
| efficiency of spray | 667-1330 SQM/min |
| spraying height | 1.2-4 meter |
| average spray area per day | 240120 SQM/day (6 hours) |
| flow rate of nozzle | 1.4-1.8 L/S |

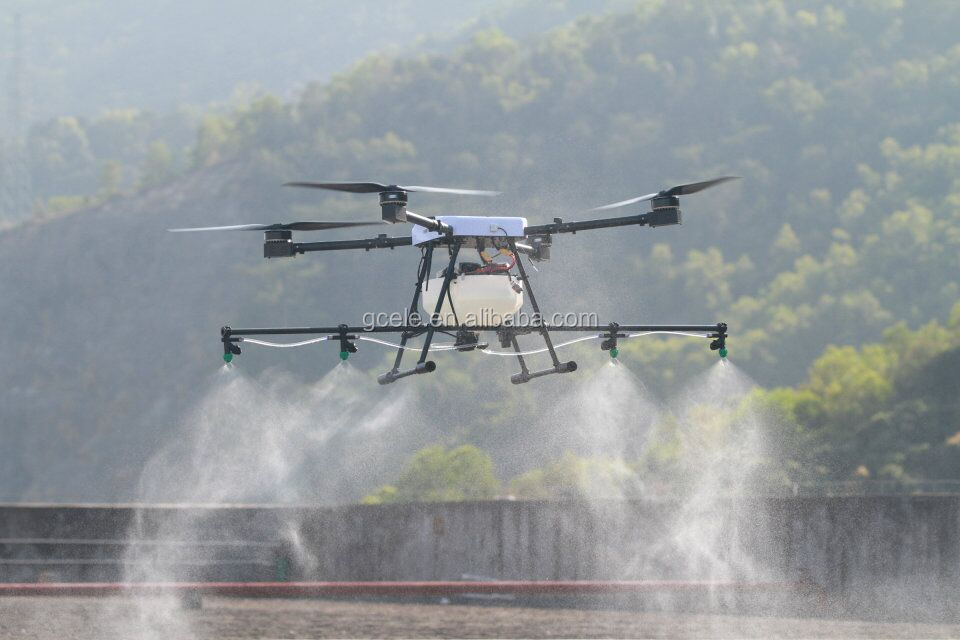

The nozzels is also can be installed in a long spraying bar
YouTube Video Link: (1) https://www.youtube.com/watch?v=wjkp9ebCL9I
(2) https://www.youtube.com/watch?v=XggdoOLwWgs
Shenzhen GC Electronic Co, Ltd specializes in the production of multi-rotor completed UAV drones and accessories. The company takes "always providing customers with high-quality products" as its core. We are a team interesting with the multi rotors just like you, JMRRC series are the Carton Fiber made multi rotor frames. We have designed a variety of 3k full carbon fiber frames for 4,6,8 Axis aircraft. We also producing the high efficiency brushless power system.
Our products are mainly used for aerial photography, entertainment, agriculture and security, etc. We try to make lighten frame and reasonable structure to bring a better performance.
We are listening your idea and suggestions to improve it. Welcome!
