| Certification: Ce,Gs | place of origin: China | Material: Plastic,Other | additional functionality: Headless Mode,Altitude Hold Mode,3d View Mode,With Camera,With Led Lights,3d Flip,One Key Takeoff / Landing,App Control,With Remote Control,Foldable | Types of: Remote Control | Payload: 20kg | Take-off weight: 80kg | Endurance: Full load≥3h | Wind resistance: Level 6 | Maximum operating speed: 140km/h | Economic cruising speed: 105km/h | Maximum flight height: 5km above sea level | Maximum take-off altitude: 3km above sea level | Control radius: Standard 30km, you can choose 50km,100km or more | Body material: Carbon fiber composites and aviation aluminum alloys |
| Payment Method | L/C,T/T,Paypal,Western Union |
| Trade Terms | FOB,CFR,CIF,EXW |
| Type of Shipping | Ocean,Land,Air,Express |
| Shipping Port | Ningbo,Shanghai |
| Supply Capacity | 100 Set/ Per Month |
| Packaging Method | Industry Packing |
| Production | 100 Set/ Per Month |
| Country of Origin | China |
| Brand | MARSHINE |
| Quality/safety certification | ISO9001, CE |

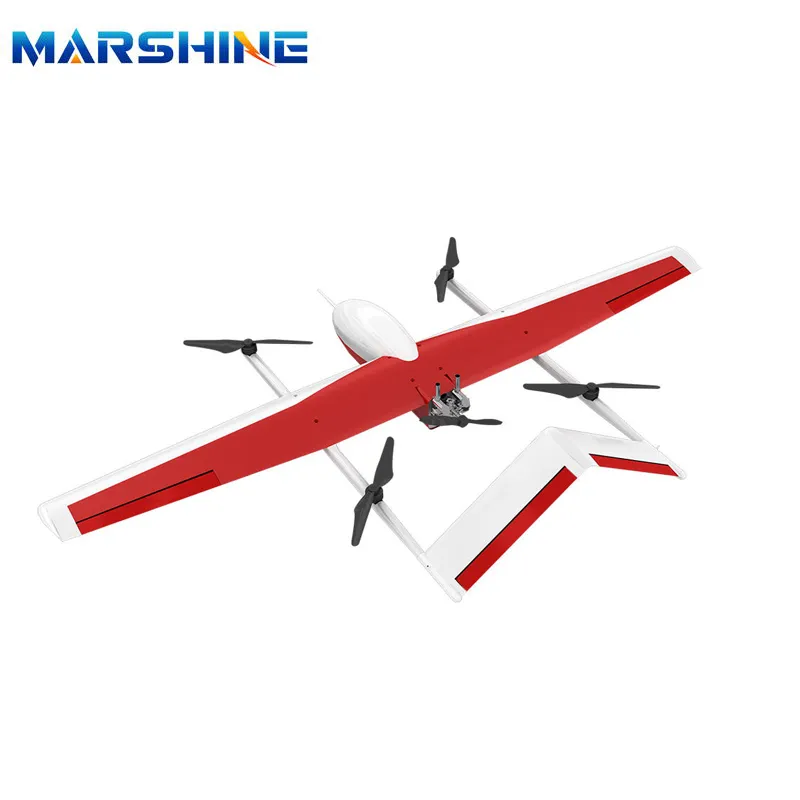

Inspection Surveillance Mapping Drone Gasoline UAV
Detailed Data
Table 1. Technical Parameters of MH-VT60
Index item
MH-VT60
MH--VT60 PRO
Flight
Payload
10kg
20kg
Take-off weight
65kg
80kg
Endurance
Full load≥4h
Full load≥3h
Wind resistance
Level 6
Level 6
Maximum operating speed
140km/h
140km/h
Economic cruising speed
105km/h
105km/h
Maximum flight height
5km above sea level
5km above sea level
Maximum take-off altitude
3km above sea level
3km above sea level
Control radius
Standard 30km, you can choose 50km,100km or more
Airframe
Body material
Carbon fiber composites and aviation aluminum alloys
Dimensions
Wingspan 4.8m,Length 2.65m
Packing box dimensions
1800*800*750mm
Power System
Fuel tank capacity
17L
20L
Fuel consumption
3.5L
5.5L
(No.95 gasoline)
| Type of pod equipment | Features |
| Visible light imaging | Detect physical defects, such as: Whether the wire is broken, Whether the anti-vibration hammer is abnormal |
| IR image | Detect whether there are thermal defects in the equipment, including joints, wire clamps, tensile pipes, splicing pipes, etc. |
| UV spectrum | Check for corona discharge caused by poor connection, internal defects of insulators, etc. |
| Aviation Digital Camera | Remote sensing equipment for obtaining high-definition power grid images |
| Lidar | Applied to the optimal design of transmission lines to provide high-precision basic data. |
| Can be used to quickly complete the clearance, position, angle and other completion acceptance projects |
To support the Transmission work, Marshine Power has Tubular Gin Pole, Come Along clamp, wire rope pulley block, nylon sheave hoisting tackle, hydraulic cable puller and tensioner ,conductor installation devices all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls approach us. Thanks.
